BeamClamp Rigging Clamps - KRC062

Overview

The Adjustable Rigging Clamp is a self adjusting, ready to install rigging clamp capable of safe working loads of up to 22.2kN. The shackle connection allows loads to be applied up to 45°. The Adjustable Rigging Clamp can accommodate a variety of flange widths and thickness and is installed without the need for any drilling or welding to the support beam.

The Adjustable Rigging Clamp is available in five (5) standard sizes to accommodate any flange width from 100 to 600mm.

The Adjustable Rigging Clamp is designed to accommodate the safe working load not to exceed 22.2kN.

Note: Custom designed rigging and lifting points are available. Please contact Kee Safety for more information.

Technical Specifications

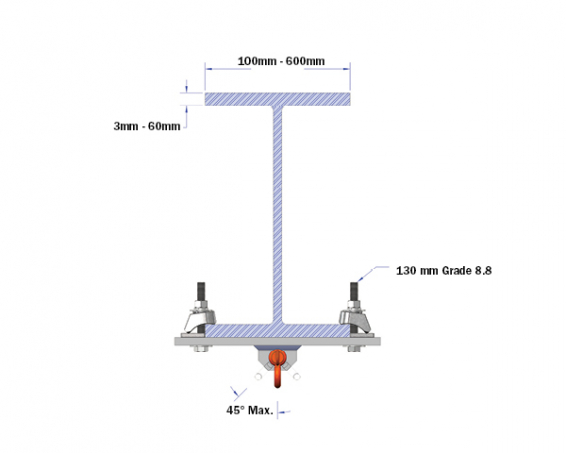

Diagram - KRC Rigging Clamps
Diagram - KRC Rigging Clamps
Product Code Flange Width (mm) Bolt Torque
(kN)		 Number of Bolts Safe Working Load
(kN Do Not Exceed)
KRC062-A 100 to 200 150 4 22.2
KRC062-B 200 to 300 150 4 22.2
KRC062-C 300 to 400 150 4 22.2
KRC062-D 400 to 500 150 4 22.2
KRC062-E 500 to 600 150 4 22.2

Note: The structural integrity of the existing steelwork should be verified by a licensed structural Engineer
