Beamclamp Component Type BB Long Nose (BBLN)

Overview

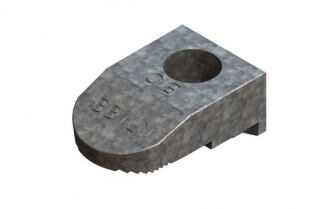

The BB Long Nose is very similar to our standard type BB but with an extended nose. This distributes more contact on the flanges of parallel beams providing contact closer to the web. Packing pieces BH1, BF1 and BG1 can be used with this product to make it fit to various thickness’s of steel at 90 degrees.

  • Hot Dip Galvanized to BS EN ISO 1461
  • Manufactured from Ductile Iron to BS EN 1563
  • 5 to 1 Factor of Safety
  • Independently tested

Technical Specifications

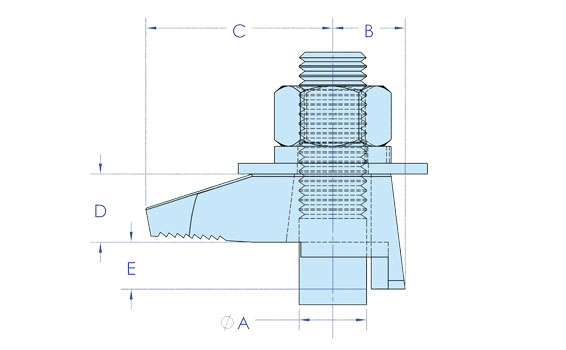

Diagram - BBLN Clamp
Diagram - BBLN Clamp
Product Code Bolt Grade A Bolt Dia. B (mm) C (mm) D (mm) E (mm) Width (mm) Torque (Nm) Tensile SWL (kN)
per bolt
(5:1 Factor of Safety)		 Frictional SWL (kN)
per four bolts
Galvanized Steel
(5:1 Factor of Safety)
BBLNG12 8.8 M12 14.0 46.0 17.5 6.5 28.5 69 5.75 1.28
BBLNG16 8.8 M16 17.5 44.5 16.0 11.0 36.5 147 9.87 3.88
