BeamClamp Components Type BE1 and BE2

Overview

The BE1 and BE2 feature a socket screw at the back to provide adjustment for varying steel thicknesses. They are the ideal choice when flange thicknesses are unknown or change on a project as they eliminate the need for packing pieces up to their maximum adjustment (Dim E). Once this maximum is exceeded our BF2 and BG2 packers can be used to increase the clamping range. Please note the BE1 and BE2 are not suitable for steel flanges with tapers greater than 5 degrees.

  • Hot Dip Galvanised BS EN ISO 1461
  • Manufactured from Ductile Iron to BS EN 1563
  • 5 to 1 Factor of Safety
  • Lloyds Register approved
  • Socket screw adjustment

The Safe Working Loads are based on assemblies tested in typical conditions

Technical Specifications

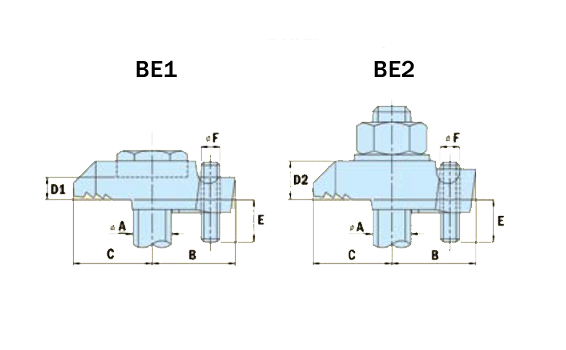

Diagram - BE1/BE2 Clamps
Diagram - BE1/BE2 Clamps
Product Code Product Code A Bolt Dia.
(Grade 8.8)		 B
(mm)		 C
(mm)		 D1
(mm)		 D2
(mm)		 E
(mm)		 F
(dia.)		 Width
(mm)		 Torque
(Nm)		 Tensile SWL (kN)
per bolt
(5:1 Factor of Safety)		 Frictional SWL (kN)
per four bolts
(5:1 Factory of Safety)
BE1G10 / M10 20 20 6 / 5 to 20 M06 26 20 2.50 /
BE1G12 BE2G12 M12 26  25.5 7 13 6 to 22 M06 28.5 70 3.72 1.3
BE1G16 BE2G16 M16 30 31 9 17 7 to 23  M08 36 150   8.25 3.9
BE1G20 / M20 35 34 11 / 8 to 24 M10 44 290 16.12 11
BE1G24 / M24 49 49 13 / 10 to 30 M12 53 490 21.10 18























Do not exceed the Safe Working Load (SWL) specified
