Hemispherical Cups and Washers - BV1 and BU1

Overview

  • Allows a swing of 10° in all directions
  • Prevents the need to bend threaded rod
  • Provides pivotable element for adjustment

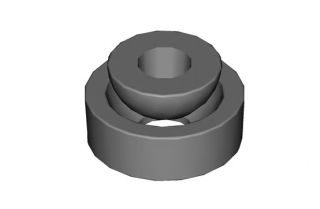

The hemispherical washers (BU1) and cups (BV1) provide a pivotable action when used with threaded rod. They allow a 10 degree swing in all directions from vertical and when used in pairs can provide a locked connection. Typical applications would be connecting to a roof rafter where the threaded rod needs to be hanging perpendicular to the floor or for making a ball socket on the legs of air conditioning support frames to allow adjustability for sloping roofs.

Technical Specifications

Diagram - BV/BU Cups and Washers
Diagram - BV/BU Cups and Washers
Washer
Product Code		 Cup
Product Code		 A (mm)
Bolt Dia		 B (mm) C (mm) D (mm) E (mm) F (mm) Tensile Load
(kN)
BU1G08 X 8 22 8 X X X 1.25
BU1G10 BV1G10 10 25 10 12 32 14 2.5
BU1G12 BV1G12 12 29 12 12  35 14 4.12
BU1G16 BV1G16 16 34 14 16 41 19 6.6
BU1G20 BV1G20 20 44 19 20 54 23.5 9.57
BU1G24 BV1G24 24 57 24 25 67 29 12.75

All of the above loads have been subject to a 5:1 Factor of Safety.
